Big Camera CCD Laser Cutting Machine
1. Take pictures and generate the cutting path automatically. 2. Feed and cut materials automatically, greatly save labor work and raise working efficiency. 3. Big laser power suitable to cutting various fabrics, leather, textile, and clothes.etc. 4. Up and lower double absorb systems can fix the materials and keep the working environment clean. 5.Widely used in Sports clothes, Advertisement, Decorations, Package Industries.
Machine Accessoies' Information
The perfect machine accessories are the important reason to realize the machine’s unique working functions, also can offer best stability in working. CCD laser cutting machine’s every part is best styles. From Laser tube to controller, metal parts and electric parts, all are the popular perfect brand’s goods.
Two Styles Of Camera
Big CCD Camera
1. Install on the top of the machine
2.Recognize area:1600*1200mm, 1600*2000mm, 1600*3000mm
3. Working functions: Take pictures, generate cutting path, help to cut printing pattern, embroider.
4. Suitable to use in producing Sports clothes, cutting embroider, and Wedding dress manufacturing.etc
Small CCD Camera
1.Install on the beside of laser head
2. Recognize area:100*100mm
3. Working functions: ①Take pictures, generate cutting path, help to cut printing pattern, Logo. ② Recognize Mark Points, Match the original design files with real materials printing pattern, help machine to cut it.
4.Suitable to used in advertisement brand manufacturing, cutting printing KT board. producing small logo, pattern.
Two Important Auxiliary Accessories
Auto Feeding Device
1. Our Own Patent
2. Three Functions:
①Feed Materials to Worktable Automatically
②Adjust the Material’s location when feeding, Avoiding Feed error.
③Feed materials back, and collect materials automatically after working. Save labor working.
Double Absorb System
1. Used to Absorb the smell and smoking when working
2. Unique Functions: Double system, Equipped with 4 sets of the exhaust fan.Absorb the smell and smoking from the worktables up and lower parts, can greatly clean the dust, and keep the working environment clean.
Two Important Optional Accessories
Smell & Smoking Clean System
1. Used to clean the smell and smoke when cutting fabric and leather. etc
2. Has some bad smell and smoking come out when cutting materials, this accessory has a filter system, that could clean the bad parts of smell and smoking, promise that the machine does not produce any bad things, let the machine become one environmental equipment.
Digital Input Instrument
1. Transfer the real samples pieces into the Technical Pattern
2. Some customers only have real samples of pieces. This accessory could transfer it into the technical pattern and send it to the machine to cut directly, only need use the handle scan the pieces’ shape, the software could creat the same pattern on computer automatically. no need design it again.
General Hot Selling CCD Laser Machine
CCD laser cutting machines have many different models, every model has its own suitable industry and products. Customers could adopt suitable models according to their own exact working requirements. Below some styles are the general hot selling models.

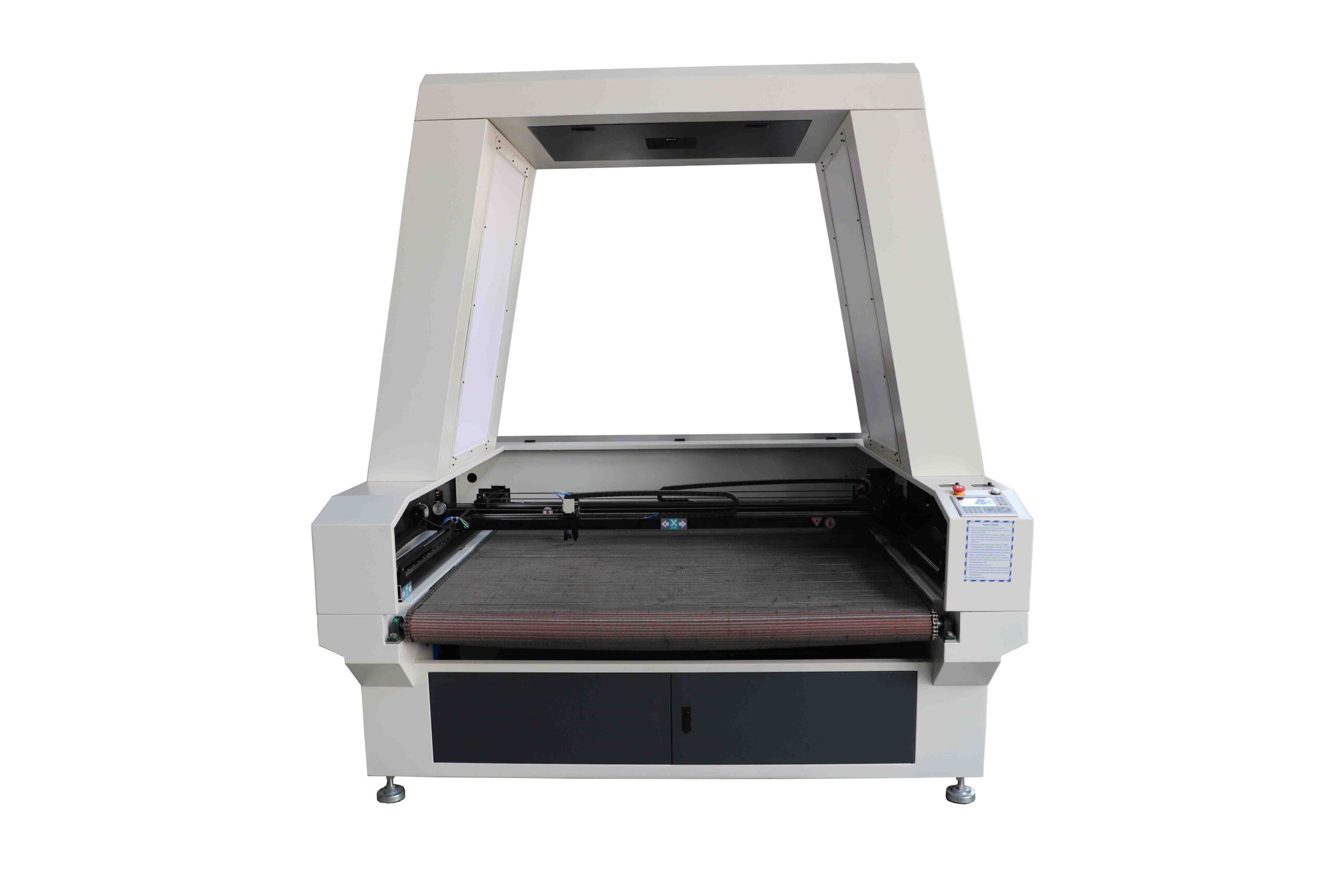

1600*3000mm Big CCD Laser Cutting Machine
- Working area-1600*3000mm /1800*2000mm
- Big scale recognize area
- 150W big power laser tube
- Auto feeding work system
Big scale of recognize area, high power laser cutting functions and auto feeding working system, suitable to cut big printing patterns, widely used in sports clothes, and wedding dresses.etc
1600*1300mm Big CCD Two Heads Laser Cutting Machine
- Working area-1600*1300mm /1800*1200mm
- Two Laser heads
- Higher working efficiency
- Auto feeding work system
Big scale of recognize area, high power laser cutting functions and auto feeding working system, suitable to cut big printing patterns, widely used in sports clothes, and wedding dresses.etc

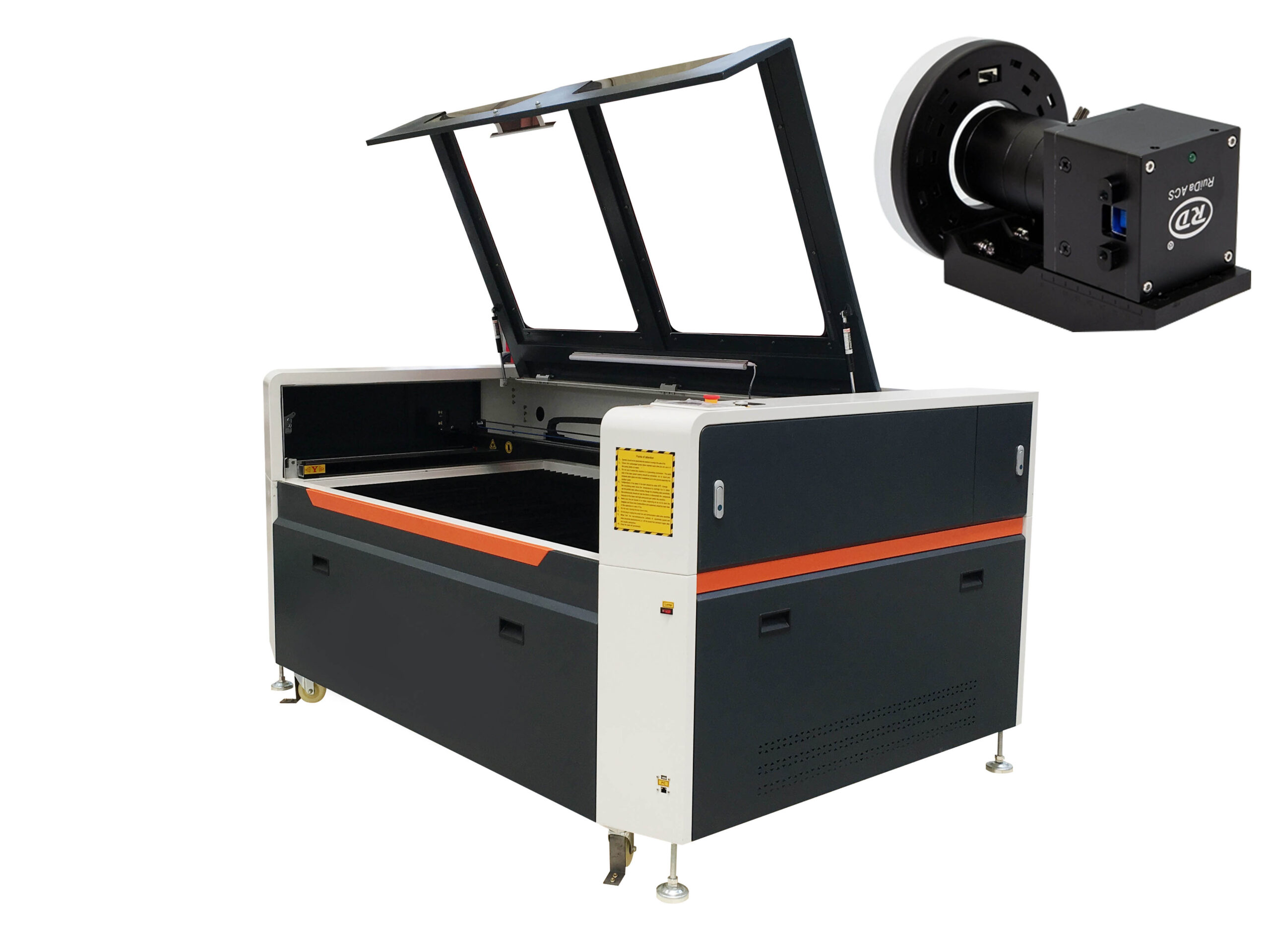

Small CCD Laser Cutting Machine
- Working area-1300*900mm / 1600*1000mm / 1800*1000mm / 1300*2500mm or as required
- 100*100MM Recognize Print Pattern size
- Recognize Mark Point Function
- Highest Cutting Precision on Printing Pattern
Except for cutting small printing pattern like big CCD system, Small CCD can recognize the mark point and match the real materials with design files, So also could cut big-size printing pictures, widely used in advertisements, cutting small logo or KT board.
Wanna Dig Deeper In CCD Laser Cutting Machine
Technical Parameter
| CCD style | Big CCD Camera | Big CCD Camera | Small CCD camera |
|---|---|---|---|
| Machine model | Single Heads Auto Feeding Machine | Double Heads Auto feeding Machine | 1390/1610/1325 Flat Model Machine |
| Working area | 1600*3000mm/1800*2000mm/1600*1000mm | 1600*1300mm/1500*3000mm/1600*3000mm | 1300*900mm/1600*1000mm/1300*2500mm |
| Controller | RD Big CCD Controller | RD Big CCD Controller | RD Small CCD Controller |
| Motor | Easy servo motor | Step motor/Easy servo motor | Step motor |
| Transmission | Imported Square guild+Belt | Imported Square guild+Belt | Imported Square guild+Belt |
| Laser tube | 150W Laser tube | 80W/100W/150W | 80W/100W/150W |
| Feeding Stand | Auto Feeding Stand | Auto Feeding Stand/Simple Stand | NO |
| Cooler | Chiller | Chiller | Chiller |
| Exhaust fan | 550W | 550W | 550W |
| Air compressor | 550W | 550W | 550W |
| Voltage | 220V/110V 50HZ | 220V/110V 50HZ | 220V/110V 50HZ |
| Packed CBM | 17CBM/14CBM/12CBM | 12CBM/16CBM/17CBM | 4CBM/5CBM/10CBM |
| Weight | 1400kgs/1400kgs/900kgs | 1000kgs/1300kgs/1500kgs | 400kgs/600kgs/1000kgs |
Installation
After receiving the machine, the customer needs to install it before working. below are some videos showing how to do this work. we also offer the completion of the manual guild with the machine together, if confusions, also could contact our after-service team to ask for support.
Installation
Testing

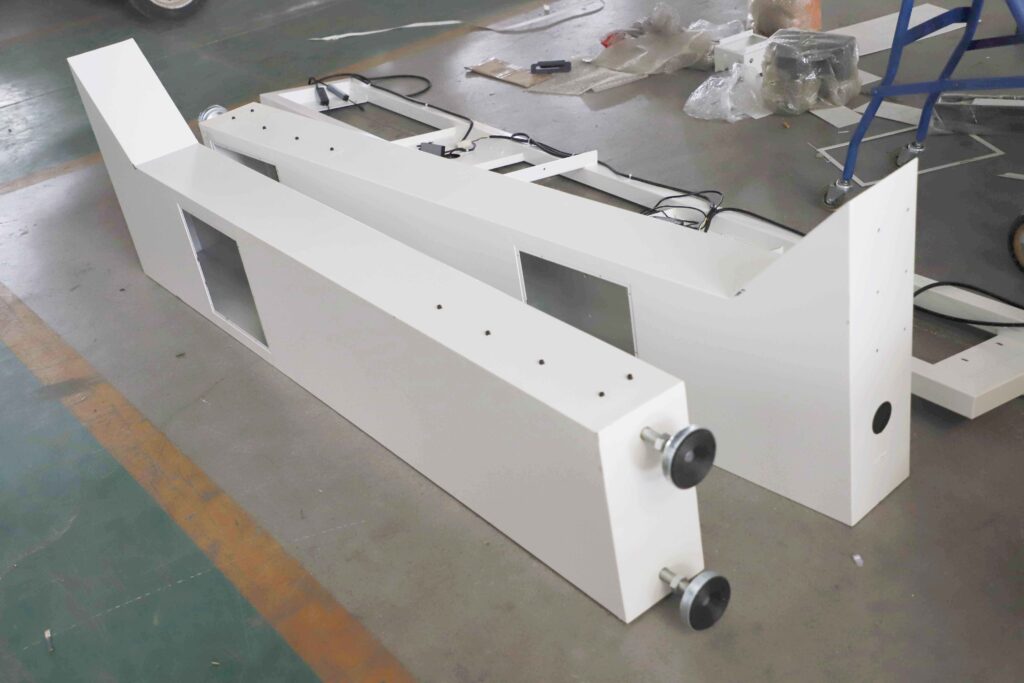

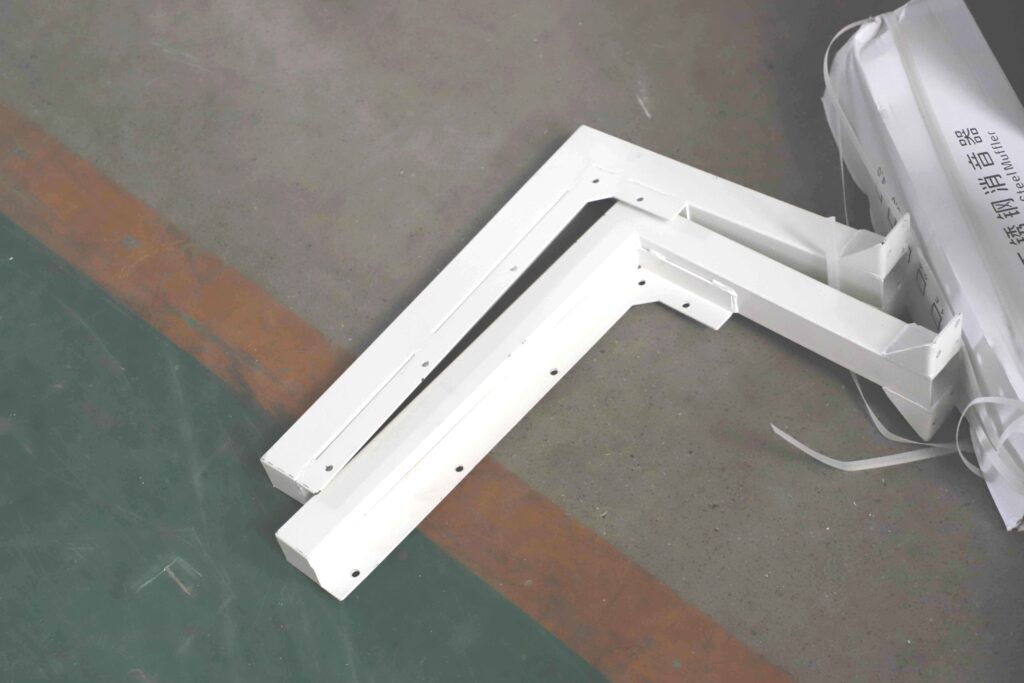

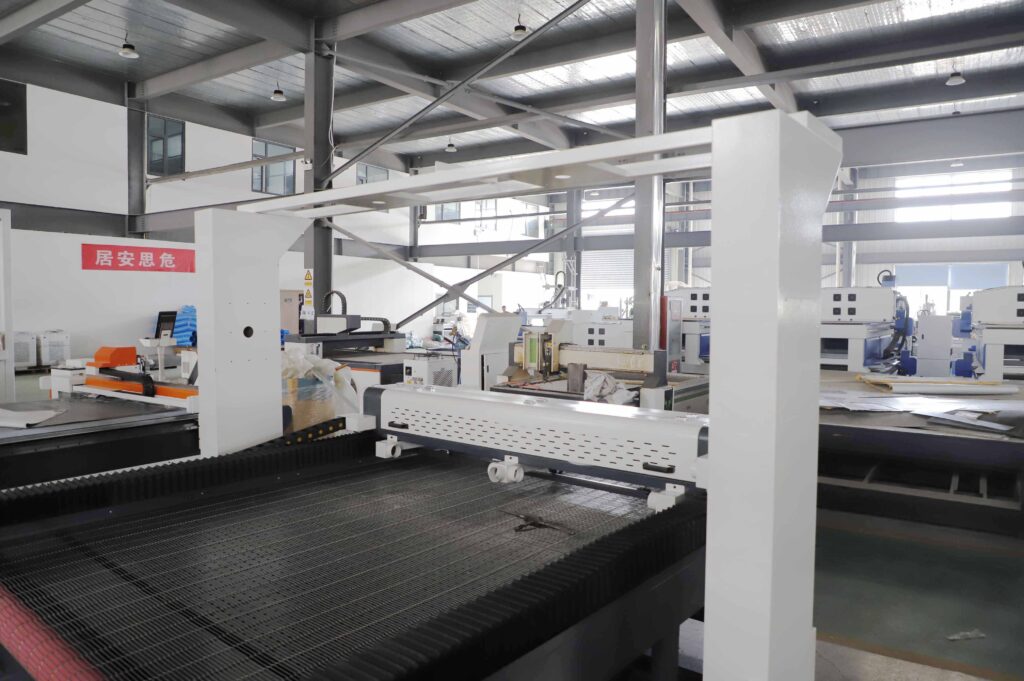

Pack Big CCD Laser Cutting Machine
Big CCD laser cutting machine has a higher CCD stand, in order to reduce the packed size and easily ship, needs to depart the whole machine into several parts before packing.
Strong After service Support System
you can come to us on 24* 7 hours. 2 years for the whole metal parts, and 12 months for the laser tube and electric parts.
Don’t worry about anything about Production, Shipping, Installation, or Operating. We will reply and offer the resolution scheme quickly.
The FAQs About CCD Laser Cutting Machine
Perfect communication is the base of cooperation. Below are some questions we usually meet when communicating with our partner for the first time. hope could help you.
Q1: I knew nothing about machine, How can I get the best one for me?
Pls you tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We'll send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We'll provide online service(Phone & Video). Field technical support if necessary.
Q4: How long is the delivery time?
For standard machines, it would be 7-10 workdays; For non-standard machines and customized machines according to your specific requirements, it would be 25 to 30 workdays.
Q5: Are you a Factory or Trading company?
We're a professional manufacturer with export license.
Q6: Where is your company located?
Factory: Laser Industrial Park, Qifa Avenue and Mingjia East Road Intersection East 200 Meters, Economic Development Zone, Qihe County, Dezhou City.
Office: Room 1401, Building 6, Rongsheng Times International Plaza, Quanfu Street, Licheng District, Jinan City.
